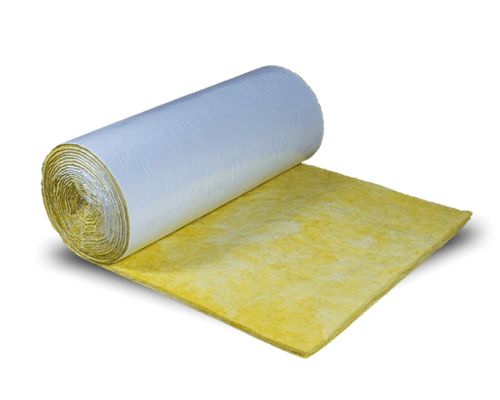

FIBERGLASS- ROLL

Industry Building, HVAC, OEM
Form Rolls
Density 16-48 kg/m3
Thickness 25 mm – 75mm
Packing Polythene-lined hessian bags / Polythene (Shrink wrapped)
Thermal Conductivity 0.030 to 0.041 at 25º C mean temperature
NRC 0.65 to 0.95Conforming to ISO 354
Non-combustibility Non-combustible / Incombustible, Reaction to Fire 'A1' - Confirming to BS 476 Part 4, IS 8183, EN 13501
Facings Unfaced, FSK, WMP, Black Glass Tissue (BGT) , and Alu Glass

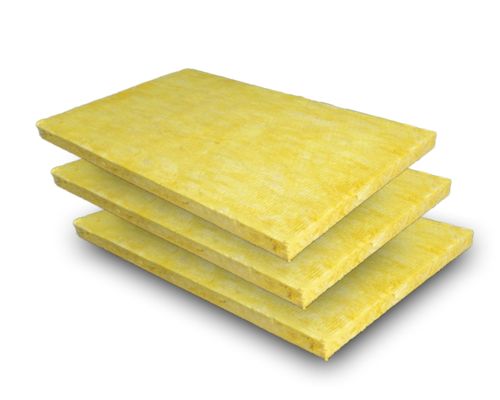

FIBERGLASS- BOARD

Industry Building, HVAC, OEM
Form Board
Density 32- 120 kg/m3
Thickness 25mm- 100mm
Packing Polythene-lined hessian bags / Polythene (Shrink wrapped)
Thermal Conductivity 0.030 to 0.034 at 25 º C mean temperature
NRC 0.65 to 0.95Conforming to ISO 354
Non-combustibility Non-combustible / Incombustible, Reaction to Fire 'A1' - Confirming to BS 476 Part 4, IS 8183, EN 13501
Facings Unfaced, FSK, WMP, Black Glass Tissue (BGT) , and Alu Glass

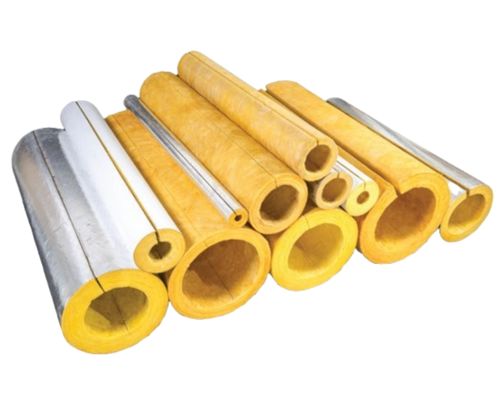

FIBERGLASS-PIPE SECTIONS

Industry HVAC
Form
Density 80 kg/m3
Thickness 25 mm – 75mm
Packing Polythene-lined hessian bags / Polythene (Shrink wrapped)
Thermal Conductivity 0.031 at 25º C mean temperature
NRC 0.65 to 0.95- Conforming to ISO 354
Non-combustibility Non-combustible / Incombustible, Reaction to Fire 'A1' - Confirming to BS 476 Part 4, IS 8183, EN 13501
Facings Unfaced, FSK

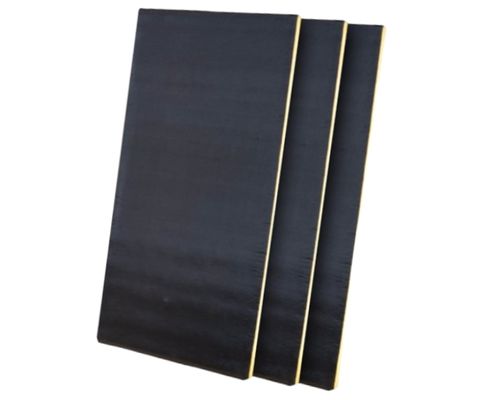

FIBERGLASS- ACOUSTIC BOARD

Industry Building, HVAC, OEM
Form Acoustic Board
Density 70 to 80 kg/m3
Thickness 25mm- 50mm
Packing Polythene-lined hessian bags / Polythene (Shrink wrapped)
Thermal Conductivity 0.0306 at 25º C mean temperature
NRC 0.65 with 25 mm thickness
(0.75 with 35 mm air gap)
Non-combustibility Non-combustible / Incombustible, Reaction to Fire 'A1' - Confirming to BS 476 Part 4, IS 8183, EN 13501
Facings FSK on one side + BGC on the other side

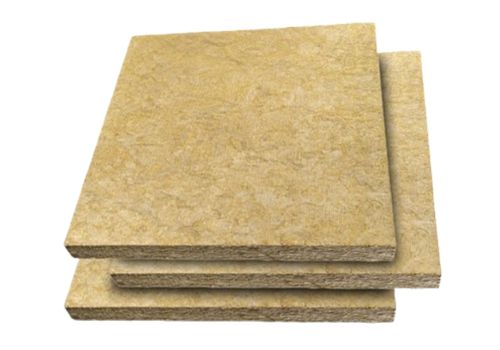

ROCKWOOL- RESIN BONDED SLAB

Industry Building, OEM
Form Resin Bonded Slab
Density 40 to 180 kg/m3
Thickness 25 to 150 mm
Thermal Conductivity 0.059 to 0.074 at 200° C mean temperature
Shot Content < 25%
Non-combustibility Non-combustible / Incombustible
Facings FSK, Alu Glass, Black Glass Tissue, and Black Glass Fabric

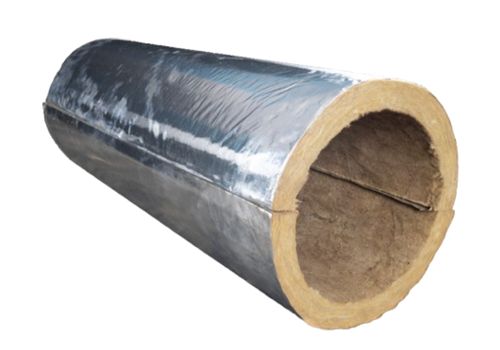

ROCKWOOL- RESIN BONDED PIPE

Industry OEM
Form Pre- formed Resin Bonded Pipe Section
Density 100 to 160 kg/m3
Thickness 25 to 100 mm
Thermal Conductivity 0.1032 W/mK at 25°C
Shot content
< 25%
Non-combustibility Non-combustible / Incombustible
Facings Unfaced/ SSK

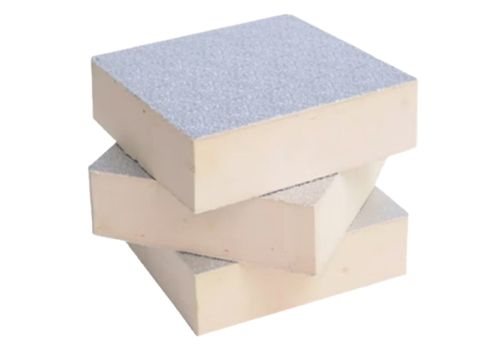

POLYURETHANE

Industry Insulation of Pipes, insulation of reducers, insulation of storage tanks, and insulation of boilers.
Form Slabs
Density 30 and 70 kg/m
Thickness 20 to 200mm
Thermal Conductivity 0.025 to 0.035 W/mK at 20°C
Service Temperature
Up to 110°C
Closed Cell Content 85
Compressive Strength 115
Facings Kraft Paper / FSK

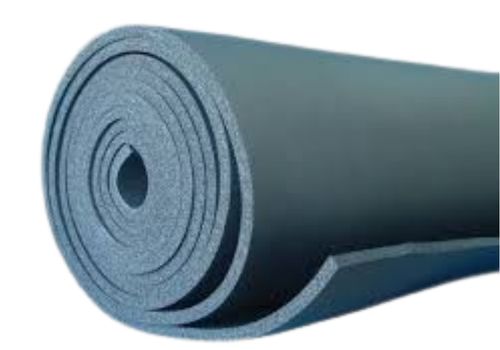

XLPE FOAM

Industry Thermal insulation for pipes, ducts, vessels (including elbows, fittings, flanges, etc)
Form Sheets
Density 30 KG/m³ (Foam core only) (+/-5)
Confirming to ASTM D3575
Thickness 3 to 25mm
Thermal Conductivity 0.031W/mK at 0°C
0.034W/mK at 23°C
Confirming to ASTM C 518
Service Temperature
-20°C to 110°C
Confirming to CIPET
Water vapour diffusion resistance factor ≥ 17000 (Foil Facing)
Confirming to BS EN 12086
